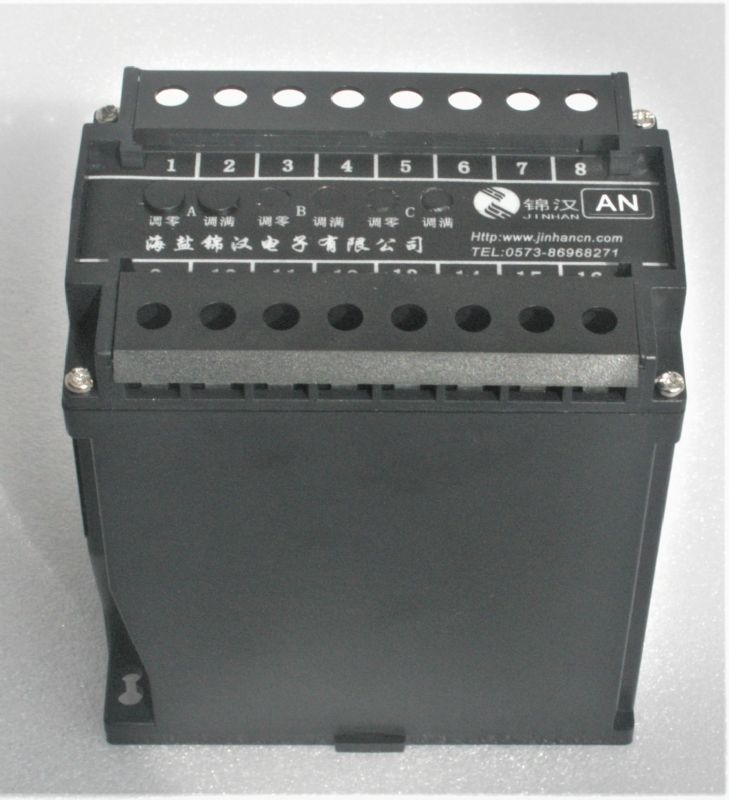

N3-AND AC negative sequence Current transducer
Quick Overview
The AC negative sequence current transmitter is an instrument capable of isolating and amplifying a negative sequence current signal in a three-phase circuit into a DC voltage or current which is linearly proportional to the input negative sequence quantity, and is widely used in a power system.
Related Products
1.Introduction:
FEATURES
◆Excellent long term stability (4 ~ 20mA, 500 W )
◆Precision measurement even for unbalance system
◆Precision measurement even for distorted wave
◆High impulse & surge protection (5KV)
◆The case can be mounted on a 35mm rail which complies with DIN 46277.
2.DESCRIPTION
Model:
N3-AND-3: 3φ3W negative sequence current transducer, accuracy class: 0.5% RO
N3-AND-3A: 3φ4W negative sequence current transducer, accuracy class: 0.5% RO

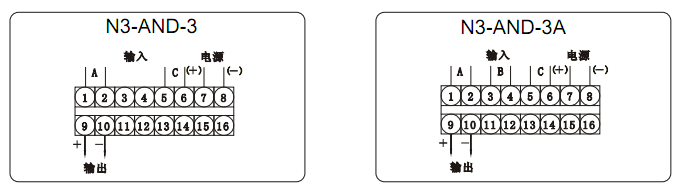

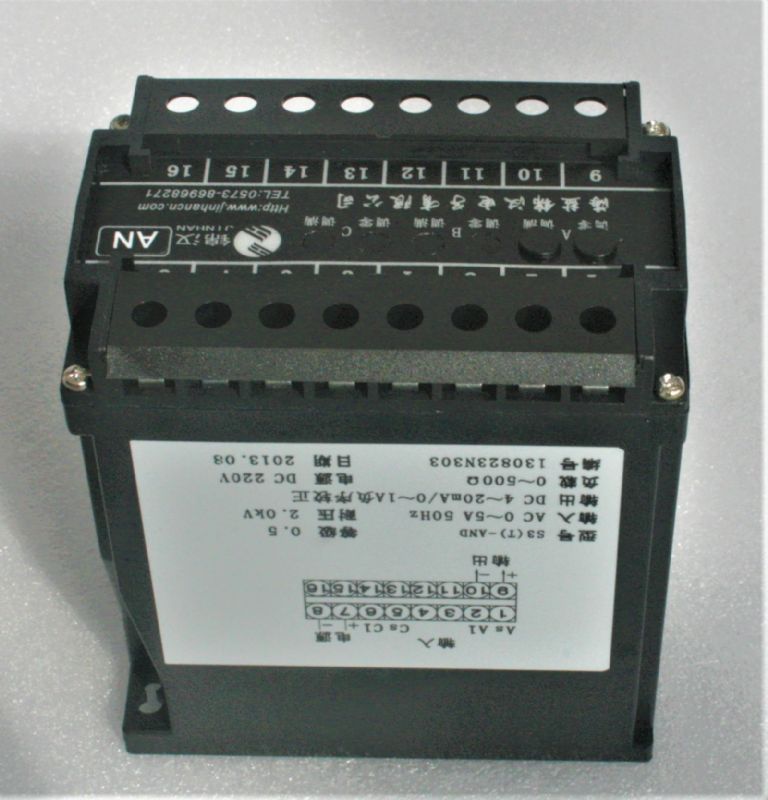

4.Trminal Connection：

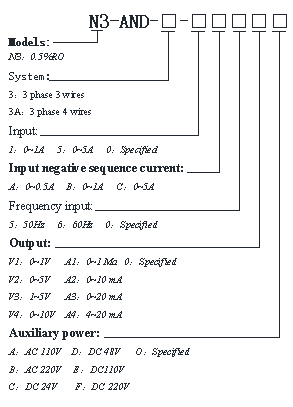

1.Order form:
Example：
（1） N3-AND-3A-5A5A4F
3 phase 3 wires negative sequence Current transducer
Input：0～5A；
Input negativesequence crrent：0～1A；
Frequency input：50Hz；
Output：4~20mA；
Auxiliary power：DC220V。
（2） N3-AND-3-1A5V2B
3 phase 3 wires negative sequence Current transducer
Input：0～1A；
Input negativesequence crrent：0～0.5A；
Frequency input：50Hz；
Output：0~5V；
Auxiliary power：AC220V
Class:0.5%RO
