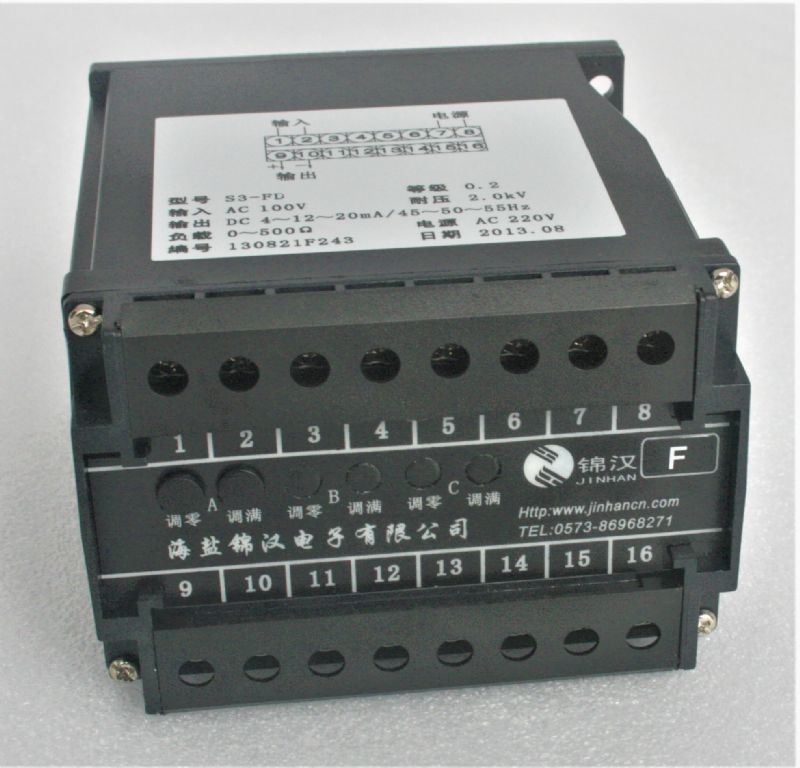

S3-FD、N3-FD FREQUENCY TRANSDUCER

Power transducer S3,N3 series power Transducer

Quick Overview

S3-FD : Accuracy:0.2%RO N3-FD: Accuracy:0.5%RO S3-FD transducer to measure power frequency and provide a DC output directly proportional to the change of input within the specified span.

OnLine Service:
Share:

1.FEATURES

Self powered
  ■Excellent long term stability (4 ~ 20mA, 500 W )
  ■High impulse & surge protection (5KV)
  ■The case can be mounted on a 35mm rail which complies with DIN 46277

2.DESCRIPTION

Model:

S3-FD : Accuracy:0.2%RO

N3-FD:  Accuracy:0.5%RO

S3-FD transducer to measure power frequency and provide a DC output directly proportional to the change of input within  the  specified span. The input signal is shapped  to  square  wave  by  the  wave shappers circuit. The duty cycle of the square wave is change with the frequency of the input signal. Then the square wave is fed into an integrated circuit and the produced  DC output  is  proportional  to  the input frequency.

3.SPECIFICATION

INPUT

Input Range

Input Burden

Max. Input Over capability

Frequency

Voltage

45 ~ 55HZ

110V± 20%

or

 220V± 20%



3.5VA

1.2 x rated continuous 2 x rated 10 sec.

4 x rated   1 sec.

55 ~ 65HZ

45 ~ 65HZ

OUTPUT

DC Output Range

Load Resistance

Output Resistance

Output Ripple

Response Time

0 ~ 1V

1KW

0.05W

 0.5% RO.

(Peak)

400mS. 0 ~ 99%

0 ~ 5V

1 ~ 5V

0 ~ 10V

0 ~ 1mA

0 ~ 10KW

20MW

0 ~ 10mA

0 ~ 1KW

5MW

0 ~ 20mA

0 ~ 500 W

4 ~ 20mA



Aux. power supply

AC 110V ± 15%, 50/60HZ

AC 220V ± 15%, 50/60HZ

DC24V, 48V, 110V,  ± 15%

Power consumption

-2.5VA, DC 3W

Power effect

 0.1%  RO

Waveform effect

0.2% RO. at  distortion  factor  30%(  PCIR)

Output load effect

0.05% RO.

Magnetic field strength

-0.2% RO., 400A/M

Span adjustment range

5%RO

Zero adjustment range

1%RO

Operating temperature range

0 ~ 60

Operating temperature range

0 ~ 60

Storage temperature range

-10 ~ 70

Temperature coefficient

- 100PPM  from  0  to  60

 60PPM, 25。C   ±  10

Max. relative humidity

95%

Isolation

Input/output/power/case

Insulation resistance

100M W, DC 500V

Dielectric withstand voltage

Between input/output/power/case

(IEC 414, 688,ANSI, C37)  AC 2.6KV, 60HZ, 1 min.

Impulse withstand test

5KV,   1.2   X 50μS

(IEC 255-4, ANSI C37 90a)  Common mode  & differential mod

Performance

Designed to comply with IEC688

Safety requirements

IEC 414, BS5458

4.Trminal Connection


5.THE OUTSIDE DIMENSION (UNIT:mm)

6.PANEL MOUNTING HOLES (UNIT:mm)

1.Order form:


2. Example of model and parameter filling:

 (1) S3-FD-451A4NN

 0.2 frequency transducer

Input frequency range: 45~55Hz;

Input nominal voltage: 110V ± 20%;

Output range: 4~12~20mA;

Corresponding to 45Hz~50Hz~55Hz;

No auxiliary power is required;

No dual output is required.





(2) N3-FD-006V2NN

0.5 frequency transducer

Input frequency range: 48Hz~50Hz~52Hz;

Input nominal voltage: 57.7V ± 20%;

Output range: 0~2.5~5V;

Corresponding to 48Hz~50Hz~52Hz;

No auxiliary power is required;

No dual output is required.





(3) N3-FD-456V2A70Y

 0.5 frequency transducer

Input frequency range: 45Hz~55Hz;

Input nominal voltage: 57.7V ± 20%;

Output range:

I road 0~2.5~5V; corresponding to 45Hz~50Hz~55Hz;

II road -1~0~1mA; corresponding to 45Hz~50Hz~55Hz;

Auxiliary power supply; AC220V

Two outputs are required.





 Note:

 1.Because the input load of the whole transducer is small, the auxiliary power supply is not needed, and the input voltage to be measured is directly used, and at the same time, it is used as a power supply source, thereby identifying no input signal and normal input signal.

2. frequency transducers that do not require auxiliary power, the signal input range can only be: 110V ± 10% or 220V ± 10%

3 If the user needs other special regulations, please indicate the parameter value in the contract.
