S4、N4-DT SIGNAL ISOLATED TRANSMITTER

Power transducer S3,N3 series power Transducer

Quick Overview

S4-DT N4-DT

OnLine Service:
Share:

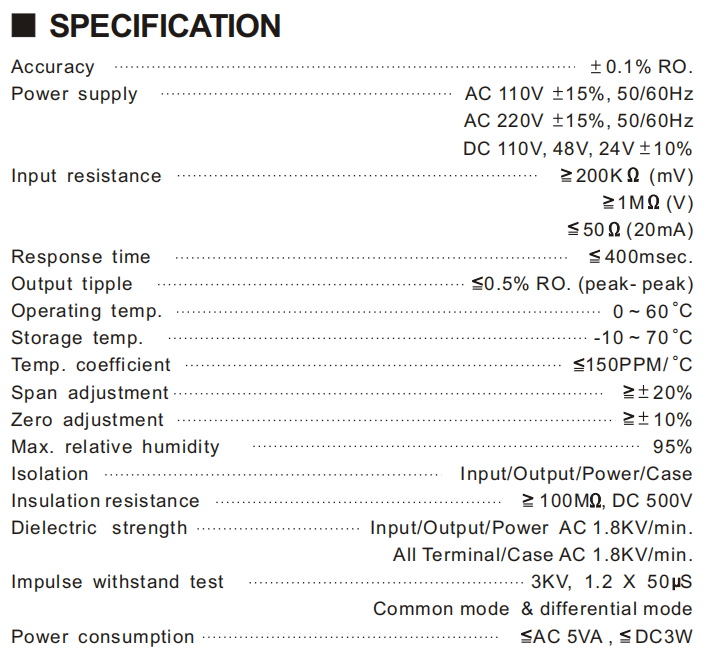

1.FEATURES

Accuracy: 0.1% RO.

Wide input and output range selection

Steady voltage, current and low rippleoutput

Plug-in type

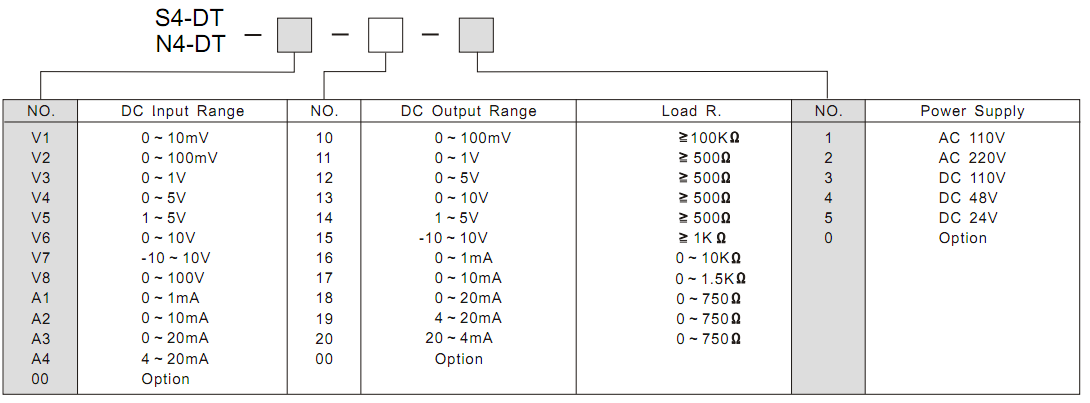

1.Order form:


2. Example of model and parameter filling:

 (1) S4-DT-V8192N

 0.1%RO DC (voltage) transducer

Voltage input range: 0~100V;

Output range: 4~20mA (single output);

Auxiliary power supply; AC220V

No need to respond quickly 2 .



(2) S4-DT-0019192

 0.1%RO DC (voltage) transducer

Voltage input range: -300V~0~300V;

Output range: I road 4~20mA;

II road 4~20mA (two-way output);

Auxiliary power supply; AC220V

No need to respond quickly 2 .





(3) N4-DT-A6122N

 0.2%RO, DC (current) transducer

Voltage input range: 0~5A

(The shunt uses 5A/75mV);

Output range: 4~5V (single output);

Auxiliary power supply; AC220V

No need to respond quickly 2 .



  Note:

 1 All DC signals can be measured in the negative direction input; when measuring a large current, it needs to be converted into a DC voltage signal by a shunt, and then measured.

2 fast response function is generally used in the occasion of signal mutation; ordinary measurement does not need this function, if the user has special requirements, please indicate in the contract with text, need to be customized.

3 If it is dual output, the auxiliary power supply can only supply AC220V.

4 If the user needs other special regulations, please indicate the parameter value in the contract.
