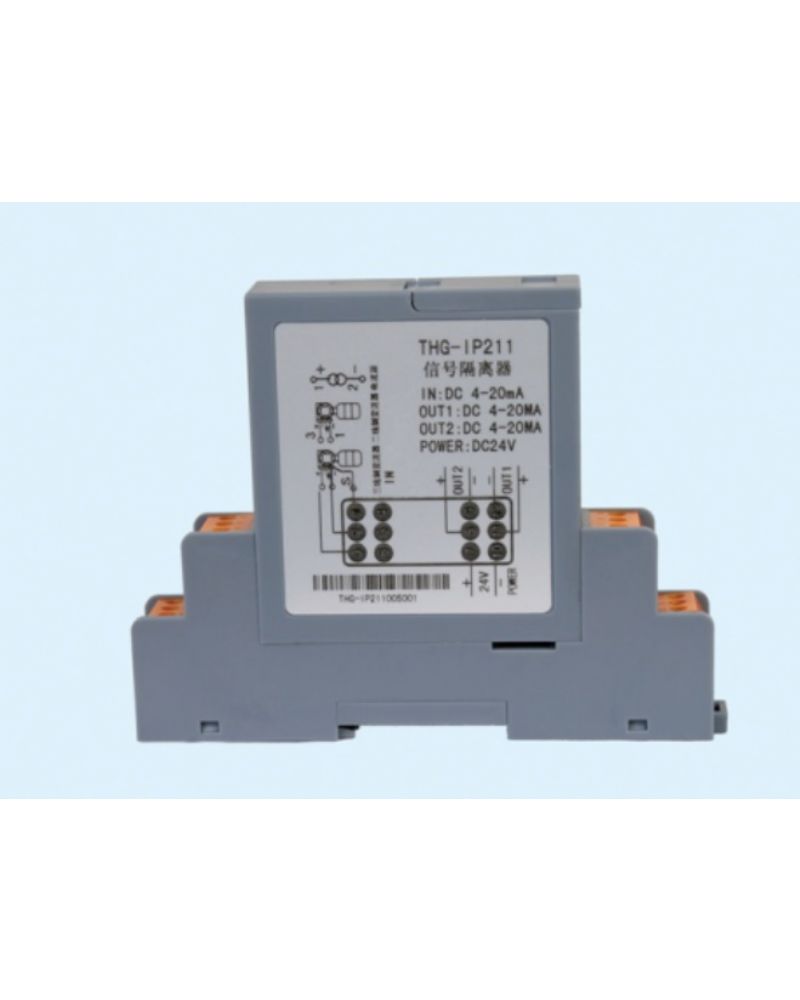

RP Series Potentiometer (Position) Signal Isolated Transmitter

Signal isolator,DC SIGNAL ISOLATED TRANSMITTERS ALL

Quick Overview

Function: Receive the sliding resistance signal of the site, convert it into 4-20mA, 0-5V and other standard signals linear with the resistance value, and output it to DCS or other secondary instruments. Contains a constant voltage source for the sensor.

OnLine Service:
Share:

RP Series Potentiometer (Position) Signal Isolated Transmitter

Function: Receive the sliding resistance signal of the site, convert it into 4-20mA, 0-5V and other standard signals linear with the resistance value, and output it to DCS or other secondary instruments. Contains a constant voltage source for the sensor.

Features: DIN rail independent installation; input, output, power supply three ports high reliability isolation.


2.SPECIFICATION

2.1 input

Input signal: Resistance signal, resistance range: 0-100KΩ

Excitation method: excitation voltage: 2.5V or 5V

2.2 output

Output load resistance: RL ≤ 500Ω (when the output is a current signal)

RL ≥ 1KΩ (when the output is a voltage signal)

2.3 Parameters

Basic accuracy: 0.1% F.S.

Power supply:DC24V, ±10%

Current consumption: ≤30mA (one input and one output, 24V power supply, 20mA output)

≤50mA (one input and two output, 24V power supply, 20mA output)

≤60mA (two in two out, 24V power supply, 20mA output)

Temperature drift: 0.005% F.S./°C (-20°C~+55°C)

Response time: ≤10mS (0-90%) (TYP)

Insulation strength: 1500V AC / 1min (between input, output and power)

Insulation resistance: ≥100MΩ (between input, output, and power)

2.4 Operating temperature range: -20 ~ +55 ° C

2.5 Electromagnetic compatibility: in line with GB/T 18268 (IEC61326-1)

2.6 Applicable field devices: Potentiometer.

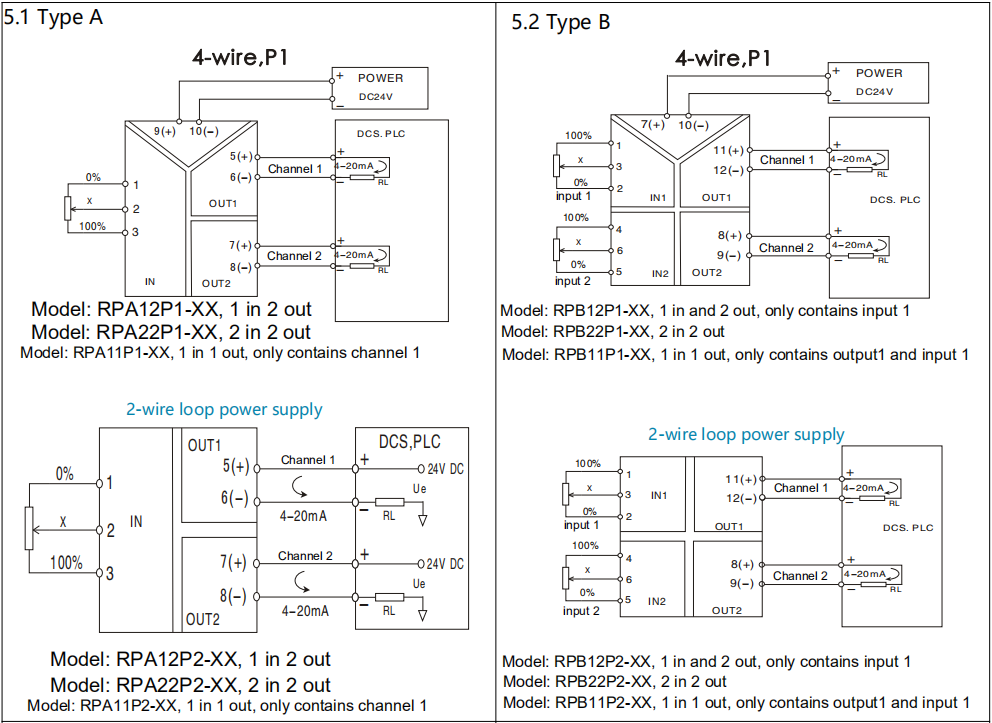

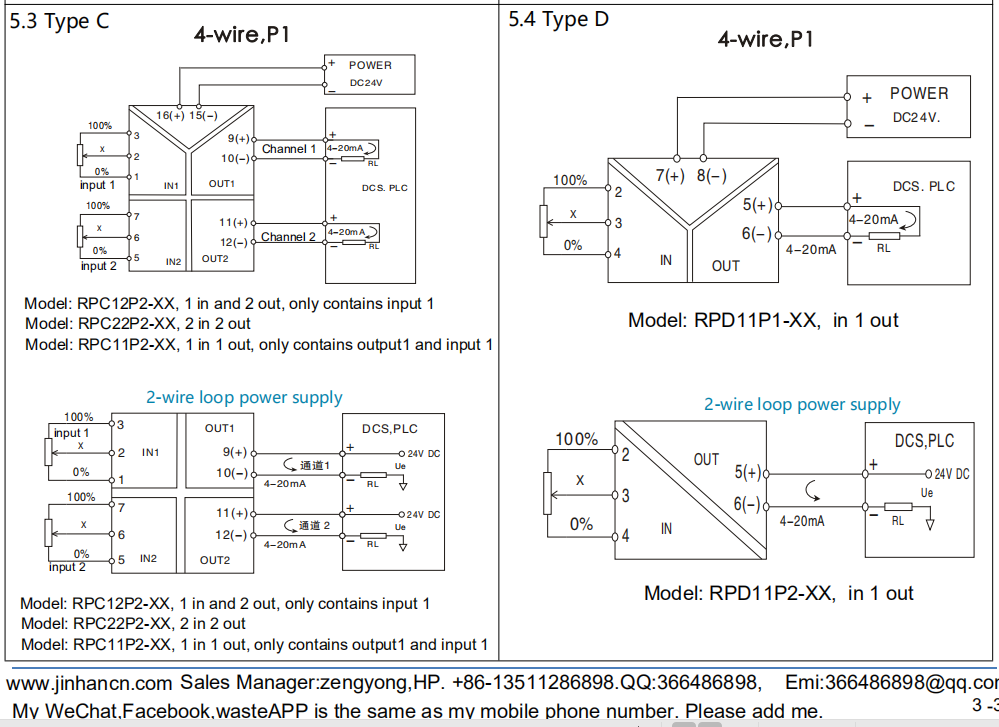

5. SCHEMATIC CIRCUITRY & CONNECTION DIAGR:

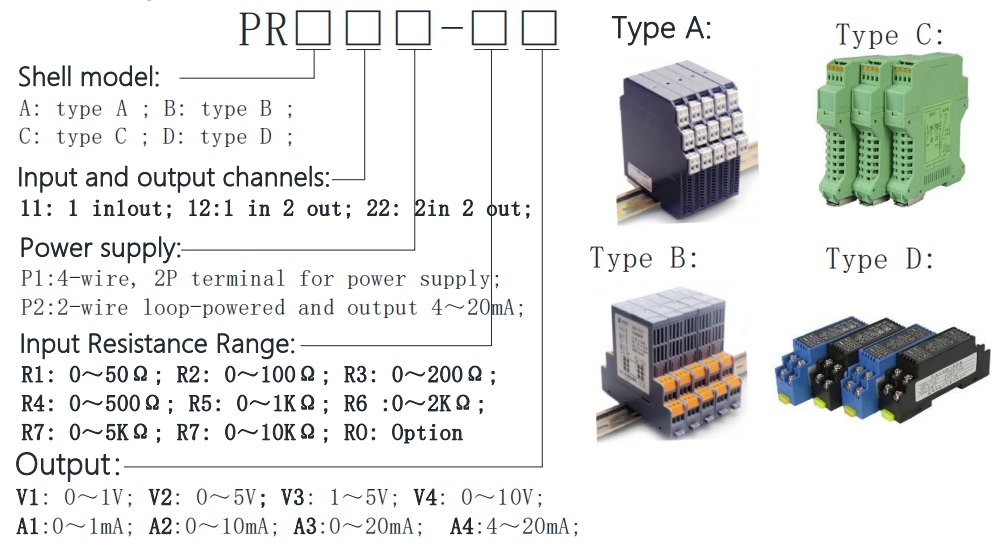

2.Ordering information:

4. Main model:

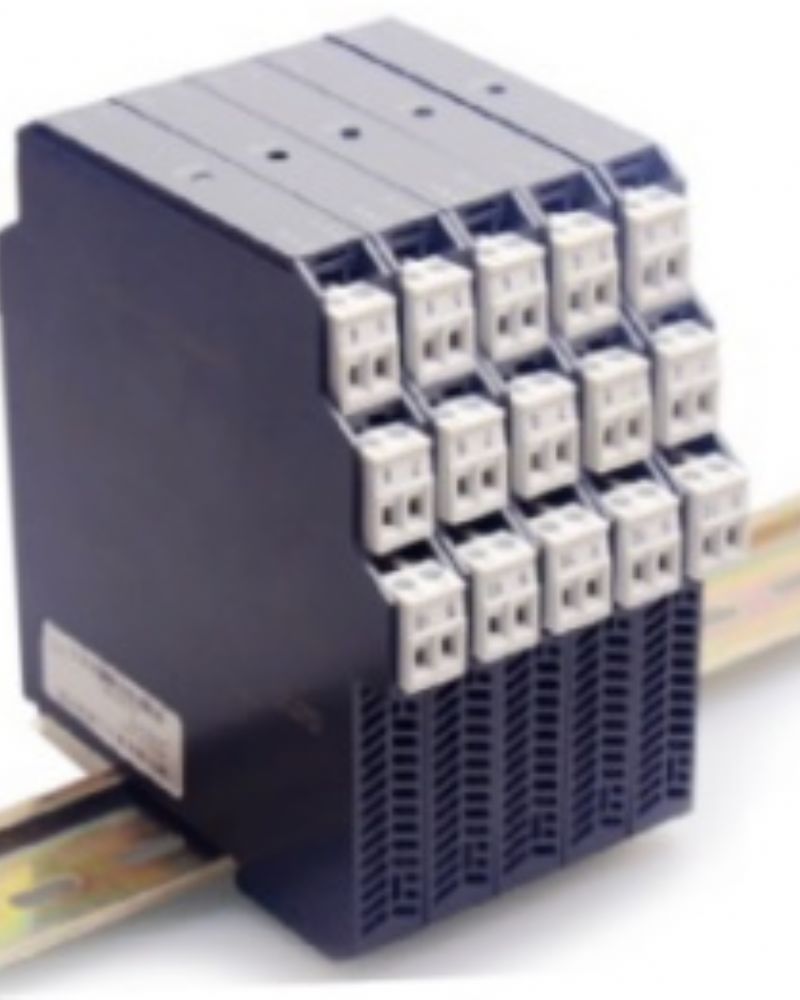

4.1 Type A shell models:

channels

4-wire,P1

2-wire P2

1 in 1 out

RPA11P1-XX

RPA11P2-XX

1 in 2 out

RPA12P1-XX

RPA12P2-XX

2 in 2 out

RPA22P1-XX

RPA22P2-XX



4.2 Type B shell models:

channels

4-wire,P1

2-wire P2

1 in 1 out

RPB11P1-XX

RPB11P2-XX

1 in 2 out

RPB12P1-XX

RPB12P2-XX

2 in 2 out

RPB22P1-XX

RPB22P2-XX

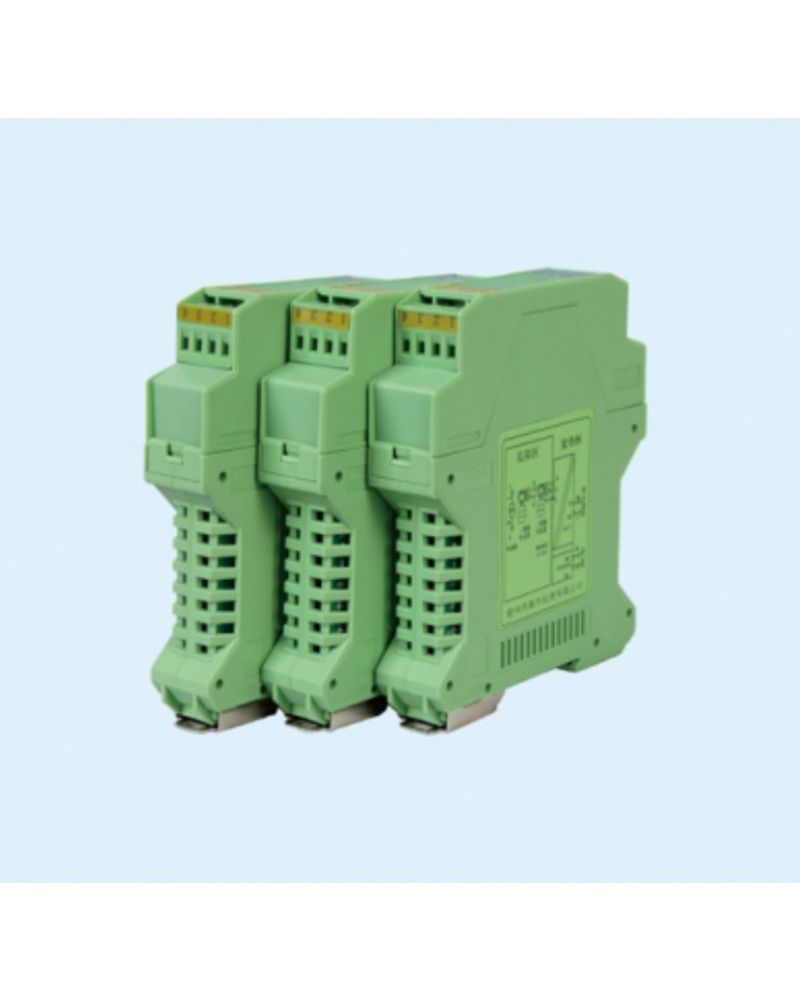

4.3 Type C shell models:

channels

4-wire,P1

2-wire P2

1 in 1 out

RPC11P1-XX

RPC11P2-XX

1 in 2 out

RPC12P1-XX

RPC12P2-XX

2 in 2 out

RPC22P1-XX

RPC22P2-XX

4.4 Type D shell models:

channels

4-wire,P1

2-wire P2

1 in 1 out

RPD11P1-XX

RPD11P2-XX
