TP series rail mounted single output AC-DC power supply

Signal isolator,DC SIGNAL ISOLATED TRANSMITTERS ALL

Quick Overview

TP series single output rail type AC-DC power supply is developed to match the use of our company's DC signal isolators. The power supply is small, lightweight, and energy efficient, and the standard rail (35mm) package is easy to install, saving customers a lot of space and time.

OnLine Service:
Share:

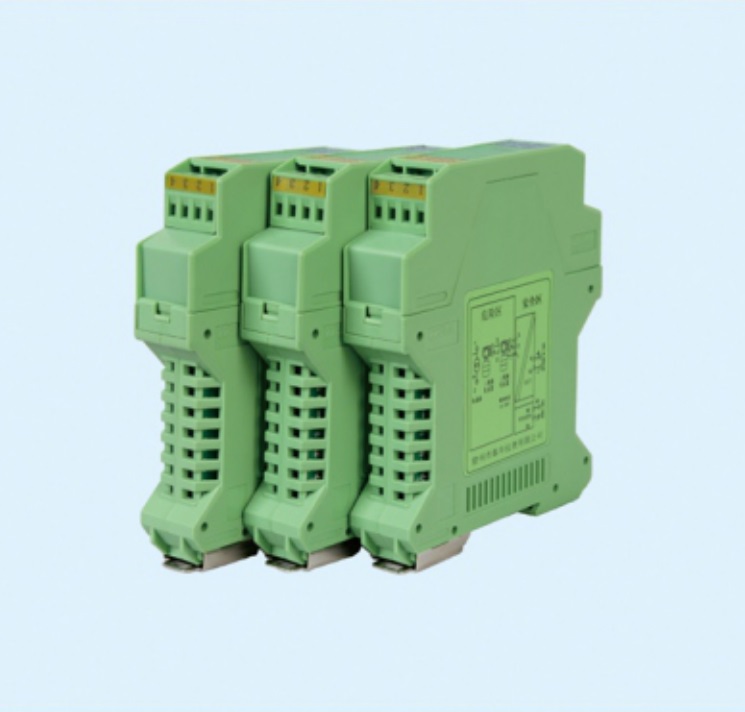

TP series rail mounted single output AC-DC power supply

TP series single output rail type AC-DC power supply standard rail type installation, high efficiency and energy saving green products, can be applied to industrial control equipment, machines, and other industrial equipment in external harsh environments, and guarantee high stability and high Anti-jamming output power. Built-in large-capacity capacitors, enough power-down retention time, in case of need. The power supply is small, lightweight, and energy efficient, and the standard rail (35mm) package is easy to install, saving customers a lot of space and time.

Ordering information

TP

X

X

X

Description

Output power

24





24 W

Input voltage

A



100 -240 VAC



B



85 - 264 VAC



output voltage

05

5 V



12

12V



24

24 V

Note: The customer needs to determine the input signal form and output signal form when ordering. If there is special need, it can be customized.


Example:

TP-24A05, output power 24 W, input voltage is 100 -240 VAC,The output voltage is 5 V

3.SPECIFICATION

Input voltage:

100 ~ 240 VAC (TP- 24 A 05 )

85 ~ 264 VAC ( TP- 24 B 12 , TP- 24 B 24 )

2.Output:

Output voltage: 5 V ( TP- 24 A 05 ); 12 V ( TP- 24 B 12 );24 V ( TP- 24 B 24 )

Output current: 4±0 . 1 A ( TP- 24 A 05 ); 2±0 . 1 A ( TP- 24 B 12 );1±0 . 1 A( TP- 24 B 24 )

Output power: 24 W

Ripple noise: 50 m V

Efficiency: 75% typ( TP- 24 A 05 ); 85 % typ( TP- 24 B 12 );87 % typ( TP- 24 B 24 )

3.General characteristics

Operating temperature: - 25 ~ + 70  ( max)

Storage temperature: - 25 ~ + 85( max)

Power derating: (above 55 ° C): 3. 75 % ° C

Humidity: 95 % ( max)

Temperature drift: 0 . 02 % /

Switching efficiency: 60 KHZ

Insulation withstand voltage: input / output 3 KVAC

Electromagnetic interference: EN 55022 , Level B FCC Part 15 , Level B

Electromagnetic interference immunity:

            Electrostatic discharge: IEC/EN 6100 - 4 - 2 4 k V/ 8 k V RF radiated immunity: IEC/EN 6100 - 4 - 3 3 V/ m

            Electrical fast transient bursts: IEC/EN 6100 - 4 - 4 1 k V

           Surge: IEC/EN 6100 - 4 - 5 Level 3 1 k V/ 2 k V

Safety certification: UL 60950, IEC 60950, EN 60950

Security level: Class 1

Enclosure protection rating: IP 20

4.Protection features:

Short circuit protection: long-term short circuit, self-recovery;

Overcurrent protection: TP-24A05: 4.4A(typ.);TP-24B12: 2.4A(typ.);TP-24B24: 1.3A(typ.)

Overvoltage protection: TP-24A05: 6.5V (max); TP-24B12: 20V (max); TP-24B24: 30V (max)

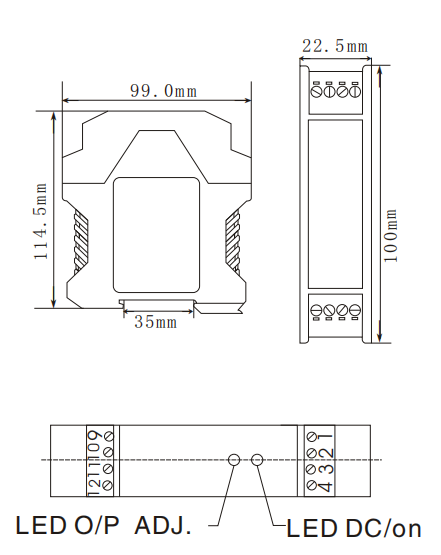

1.OUTSIDE DIMENSION (UNIT: mm) :

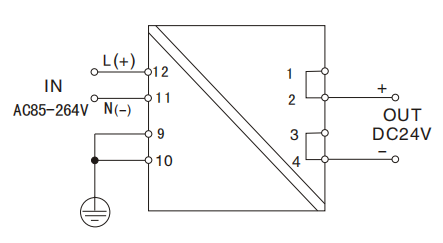

3.  CONNECTION DIAGRAM:
