GPW/GPK WATT & VAR TRANSDUCER

Power transducer GP&EP series power Transducer

Quick Overview

Applied Standards & Rules: Measuring and conversion:IEC 688 / 1992 - 04 Dielectrical strength:IEC 688 2KVac/1 min. Surge and Impulse test:ANSI C37.90 / 1989,IEC 255-3 (1989) 4KV1.2x50us

OnLine Service:
Share:

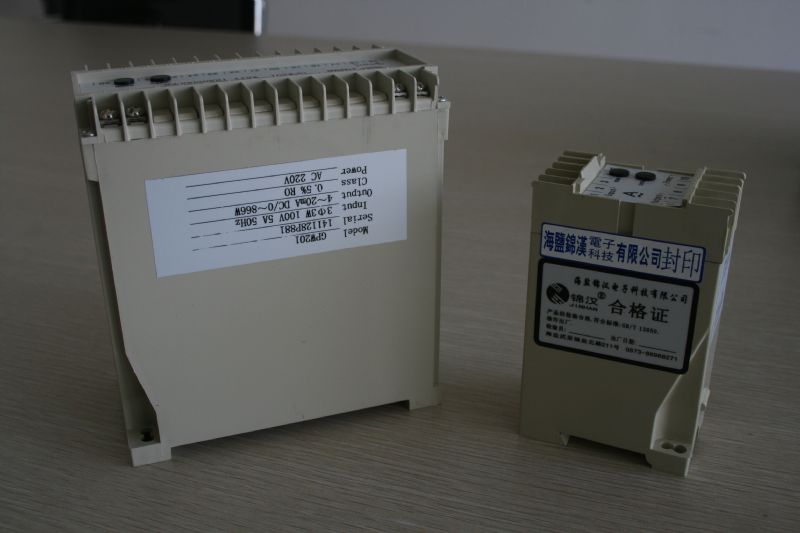

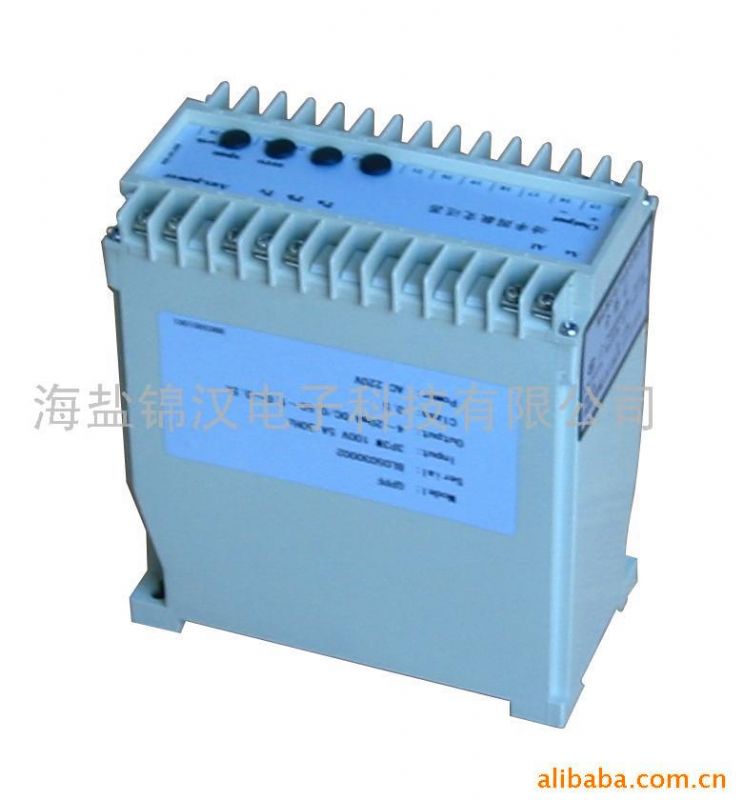

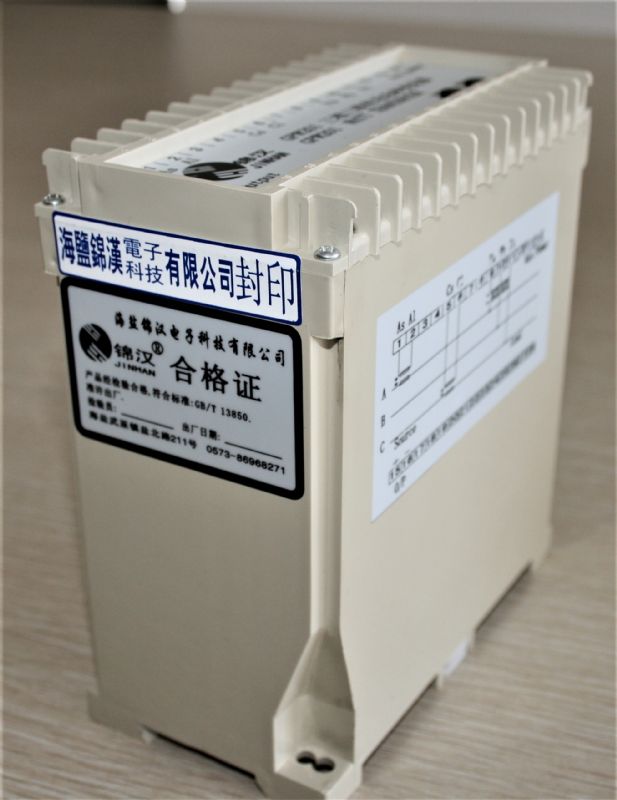

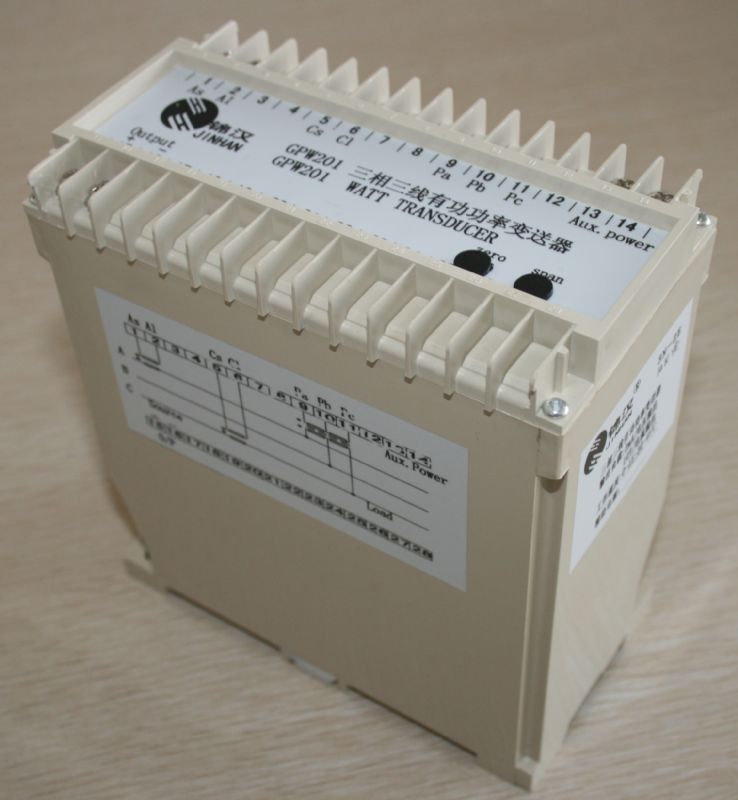

GPW/GPK active power / reactive power transducer

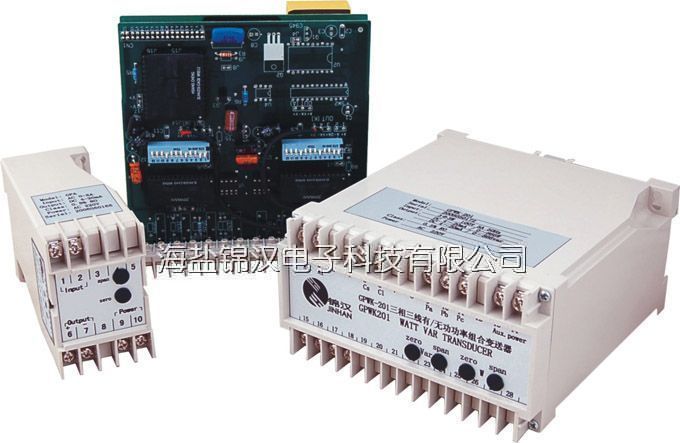

GPWK active power / reactive power combined transducer

GPWA/GPKA active power current / reactive power current combination transducer

1.Introduction:

    Time-division-multiplication (TDM) principle of computing the AC power inputs to a corresponding DC output value. The measurements of active power of single or three phase balanced or unbalanced systems, are precisely converted to a highly accurate linear DC voltage or current output.

Applied Standards & Rules:

Measuring and conversion:IEC 688 / 1992 - 04

Dielectrical strength:IEC 688 2KVac/1 min.

Surge and Impulse test:ANSI C37.90 / 1989,IEC 255-3 (1989) 4KV1.2x50us

2.Models and specifications:

GPW101 1 phase 2 wires watt

GPW201 3 phase 3 wires watt

GPWT201 3 phase 3 wires watt(Dual output)

GPW301 3 phase 4 wires watt

GPWT301 3 phase 4 wires watt(Dual output)

GPK201 3 phase 3 wires Var

GPKT201 3 phase 3 wires Var(Dual output)

GPK301 3 phase 4 wires Var

GPKT301 3 phase 4 wires Var(Dual output)

GPWK201 1 phase 2 wires watt&Var

GPWKA2013 phase 3 wires watt&Var&1Current

GPWK301 3 phase 4 wires watt&Var


3.Specification

Reference Standard:

GB/T 13850-1998(IEC688-1992)

Accuracy:

0.5%

Long term stability:

±0.5%/year,No accumulation error

Temperature influence:

<100ppm/

Response Time:

<400ms

Output Ripple:

<1.0% (peak-peak value)

Input burden:

Current less 0.2VA;voltage less 0.1VA

Frequency:

Nominal  frequency ±10%

Maximum output load:

Current output Max10V  pressure drop

Voltage output rated 2mA MAX 5mA output

Auxiliary power:

WATT unit: <3.5VA,VAR unit <3.5VA,Current unit <3VA.

Auxiliary load  effect:

<0. 2 %

Allow excessive input:

Current 2 rate continuous  20 rate

1 secs voltage max 2 rate continuous

Dielectric strength:

Input/output/power/betwem the crust 2KV,AC 1 min IEC866

Impact test:

ANSI C37.90a/1973,IEC 255-4,(5kV 1.2/50us  Pulsed Voltage)

Calibration amplitude:

Full scale least3%,zero least1%

Magnetic field effect:

0.4KA/m magnetic field strength change<0.05%

Operating  condition:

Temperature -1055relative  humidity

95% RH non condensing

Storage condition:

Temperature-4070  relative humidity

95% RH non condensing

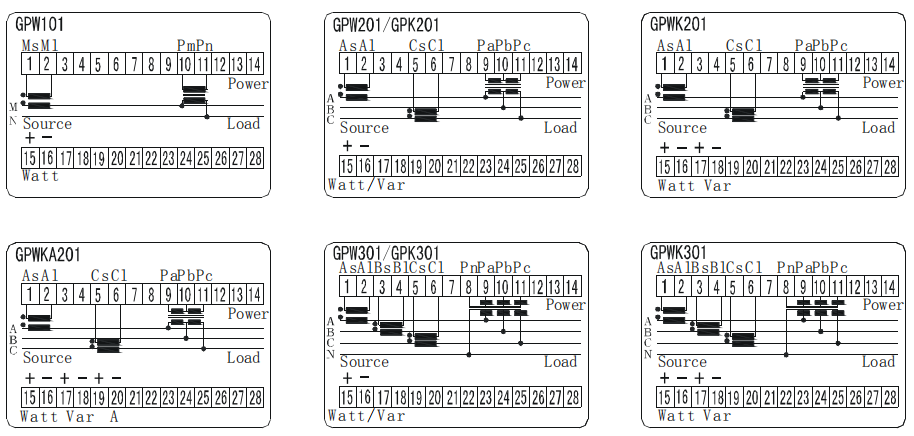

4.Terminal Connection

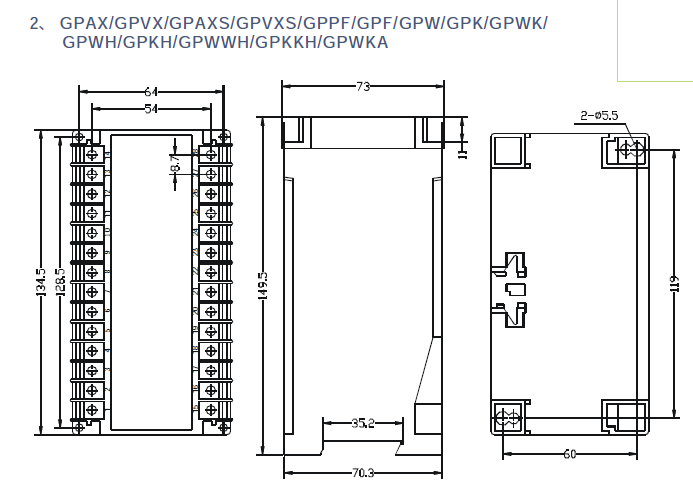

5. Dimensional Drawings:

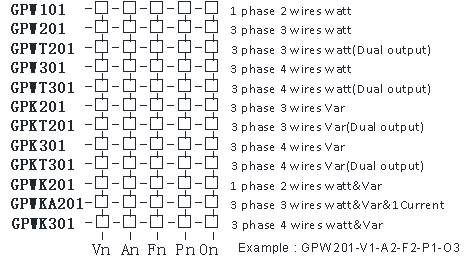

1.Order form:


2.Input & Output parameters



Vn :

 Voltage input

Vn

rating range

V1

100
80-120VV

V2

220V

180-300V

V3

400V

320-450V

Vy

Specified

 On : Output

An :

Current input

An

rating range

A1

1A

0-1.2A

A2

5A

0-6A

A3

10A

0-12A

Ay

Specified

O1

0-±1mA

O2

0-±20mA

O3

4-20mA

Fn :

Frequency input

Fn

rating range

F1

50Hz

45-55Hz

F2

60Hz

55-65Hz

F3

400Hz

Fy

Specified

O4

0-±5mA

O5

0-±10mA

O6

4-12-20mA

Pn :

Auxiliary power

Pn

rating range

P1

AC110 V

120 V ± 15%

P2

AC220 V

240 V ± 15%

Ps

Internal Power

Py

Specified

O7

0-±1V

O8

0-±5V

O9

0-±10V

PDn

rating range

PD1

DC110V

120 V ± 15%

PD2

DC220V

240V± 15%

PD3

D, , , C24 V

24 V ± 20%

PDy

Specified

O10

2-10V

O11

1-5V

O12

1-3-5V


Note:

1. Standard output calibration

bipolar 0 to ± 1mA for 0 to ± D Watts or Vars

4-12-20mA for -D to 0 to +D Watts or Vars

2. External power mode suitably for all output types

Internal power mode, only suitably for 0-1mA / 0-20mA / 0-1V / 0-5V / 0-10V output


Example : 1:GPW201-V1-A2-F1-P2-O8       Correction by 1000 W

       3 phase 3 wires active power transducer

       Input100V  5A  50Hz

       PowerAC 220V

       Output0-±5V/0-±1000W

 Example : 2:GPKT201-V1-A2-F1-P2-O1/O8        Calibrating by 866var,Two-way output

       3 phase 3 wires active power transducer

        Input100V  5A  50Hz

        PowerAC 220V

       Output0-±1mA/0-±866var   0-±5V/0-±866var
