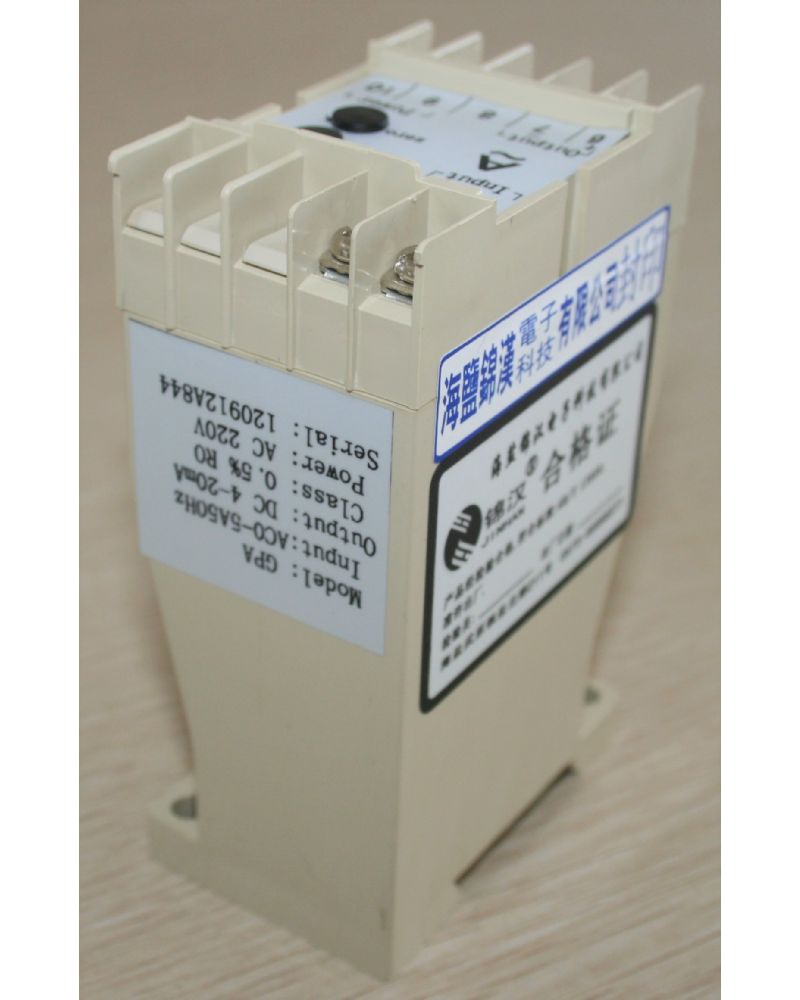

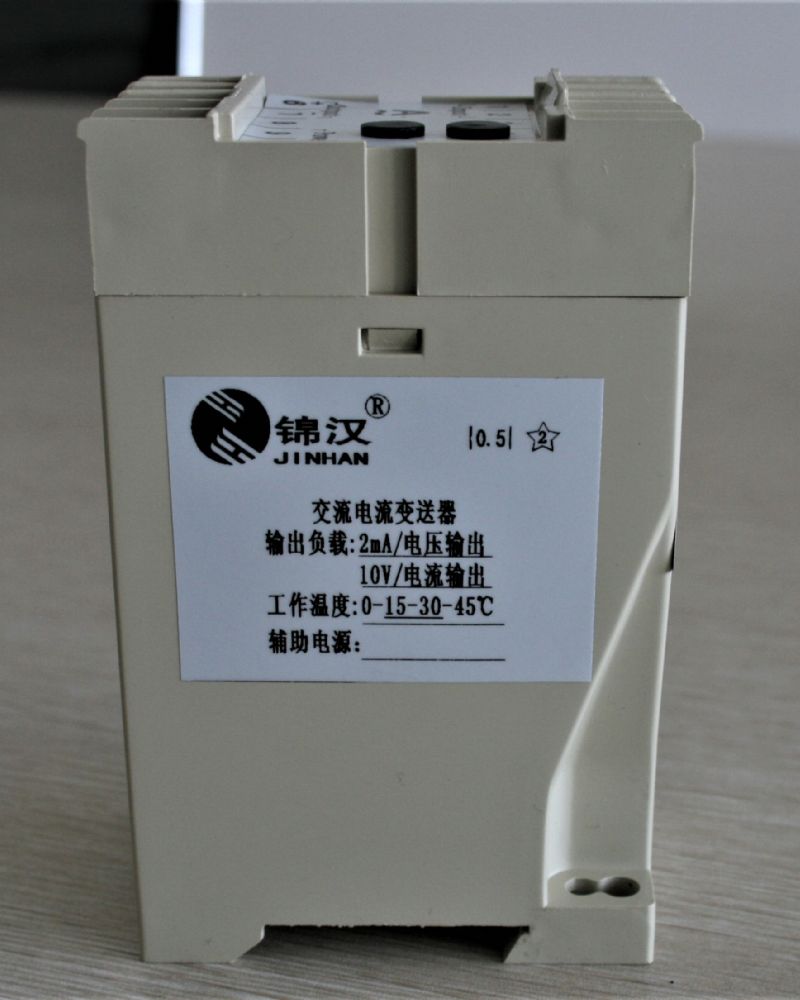

GPD DC ISOLATING TRANSDUCER

Power transducer GP&EP series power Transducer

Quick Overview

GPD-1:Single output DC isolation transducer GPD-2:Dual output DC isolation transducer

OnLine Service:
Share:

1.Applied Standards & Rules

    Measuring and conversion: IEC 688 / 1992 - 04
    Dielectrical strength : IEC 688 2KVac / 1 min.
    Surge and Impulse test: ANSI C37.90 / 1989,IEC 255-3 (1989) 4KV 1.2 x 50 us

2.Specification

Accuracy ( 23±3°C ) :0.5% of effecive range

Linearty & repeatability 0.05% typical

Dielectric strength :2000Vac ... power / input & output terminals FPD

2000Vac ... input / output / case FPD

4000Vac ... power / input & output terminals FPDH

4000Vac ... input / output / case FPDH

Output drive capability 10mA for voltage mode, 10V for current mode

Maximum input over :  300Vrms continuous > 2V ranges;
                                                  150Vrms continuous 2V ranges;
                                                  150mA continuous for current input

Input resistance-ohm: 100M ... 2V ranges,500K >2V ranges,20 for all current input range

Power effect :  < 0.003% for per volt chang

Response time & ripple :250 ms typically, ripple < 0.1% rms ro

Common mode rejection : 120dB, DC to 60Hz

Temperatured stability 0.007% ro per degree C

Storage condition: Temperature range -10 to 70°C, RH 20 to 95% non condensed

Operating condition Temperature range -5 to 55°C, RH 20 to 95% non condensed

Power supply:    ±10% of rated, less 3.5 VA for AC input,    ±10% of rated, less 3.5 Watt for DC input

Construction: Socket plug-in type with barrier terminals

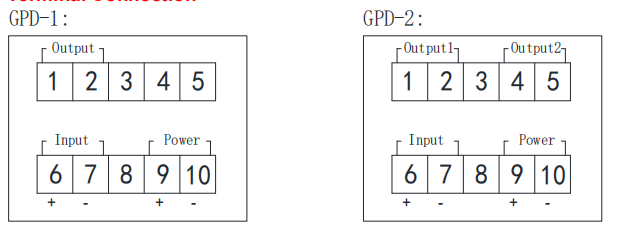

3.Terminal Connection:

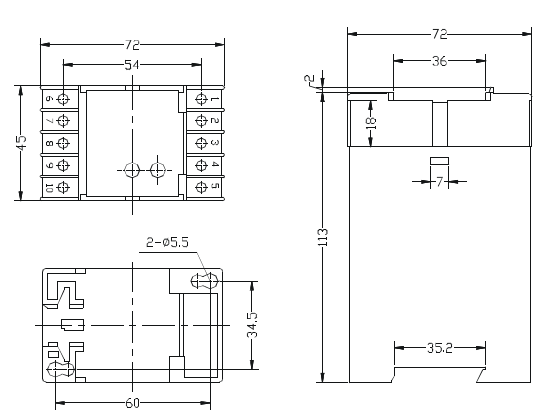

4.Dimensional Drawing:

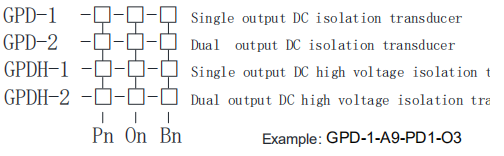

1.Order form:


2 Input & Output parameters

An:电流输入范围

Input Ranges Current

Vn电压输入范围

Input Ranges Voltage

Pn电源                rating

Aux. Power Standard     range

A1

0-1mA

A2

0-2mA

V1

0-50mV

V2

0-100mV

V3

0-200mV

P1

AC110 V

120 V ± 15%

PD1

DC110V

120 V ± 15%

A3

0-5mA

A4

0-10mA

V4

0-500mV

V5

0-1V

V6

0-2V

P2

AC220 V

240 V ± 15%

PD2

DC220V

240V± 15%

A5

0-20mA

A6

4-20mA

V7

0-5V

V8

1-5V

V9

0-10V

Ps

Internal Power

PD3

DC24 V

24 V ± 20%

A7

0-50mA

A8

10-50mA

V10

2-10V

V11

0-120V

V12

0-200V

Py

Specified

PDy

Specified

A9

0-75mV



V13

0-350V

V14

0-600V







On:输出

Output Range

O1

0-1mA

O2

0-20mA

O3

4-20mA

O4

0-5mA

O5

0-10mA



O7

0-1V

O8

0-5V

O9

0-10V

O10

2-10V

O11

1-5V

O13

用户指定
