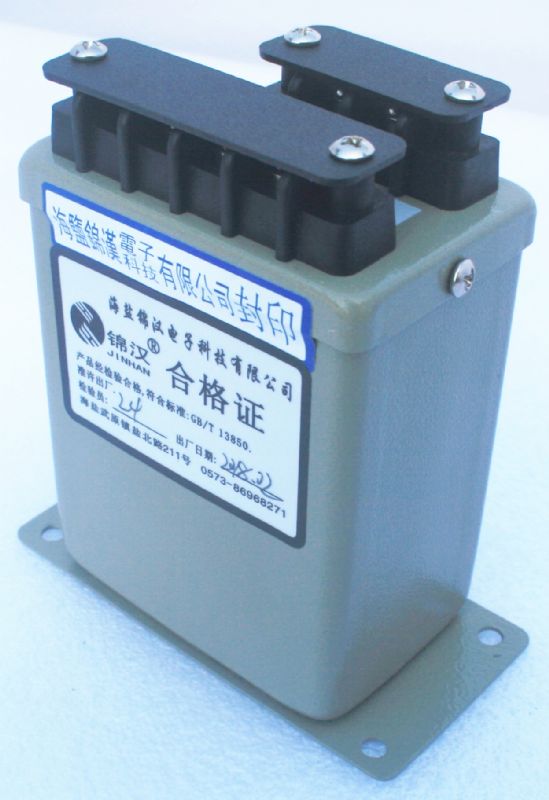

FPA AC CURRENT TRANSDUCERS

Power transducer FP series power Transducer

Quick Overview

交流电流、电压变送器是一种能将被测交流电流、电压转换成按线性比例输出的直流电流或电压的仪器。配以相应的指示仪表或装置,可在电力系统交流电路中实现对电流、电压的测量和控制。 FPAR、FPVR与FPA、FPV、FPAX、FPVX的区别是真有效值变换,不随波形畸变而影响测量精度,因此特别适用于波形畸变严重的地区。

OnLine Service:
Share:

1.Introduction:

The AC current feeder is an instrument that converts the measured AC current into a DC current or voltage that is output in a linear ratio. With the corresponding indicator instrument or device, the measurement and control of current and voltage can be realized in the AC circuit of the power system.

The difference between FPAR and FPA is the true rms transformation, which does not affect the measurement accuracy with waveform distortion, so it is especially suitable for areas with severe waveform distortion.

  Models and specifications:

FPA: 1 unit of avg. to rms conversion

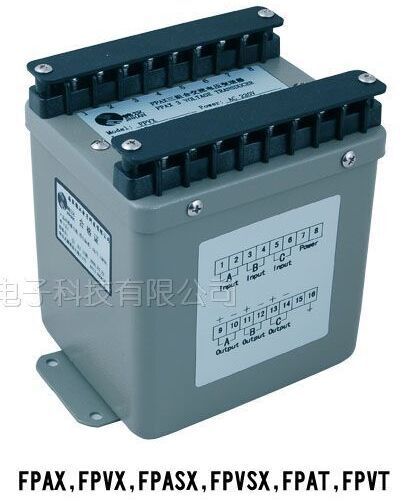

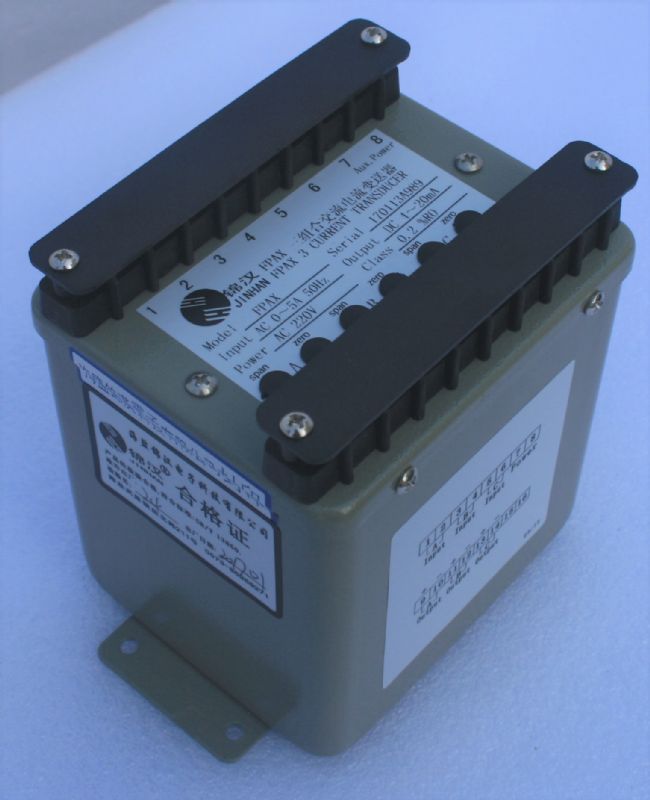

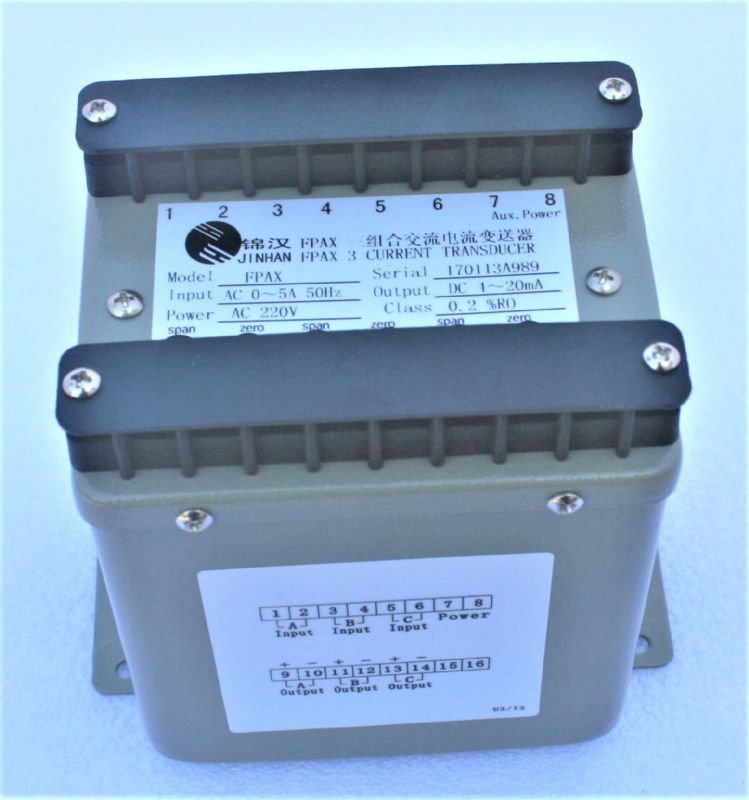

FPAX: 3 unit of avg. to rms conversion

FPAR: Ture rms conversion

FPAT:Dual output(avg. to rms conversion)


2.Specification

Accuracy ( 23±3)



0.2% RO:FPA, FPAX;0.4% RO:FPAR

Maximum output load



DC current mode : maximum 10V drop

DC voltage mode : maximum 5mA drive

Dielectric strength



AC 2KV 1 minute between terminals

AC 2.6KV 1 minute / terminals to case

Surge and impulse test



ANSI C37.90 / 1989,IEC 255-3 (1989) 4 KV 1.2 x 50 us

Maximum input over



1A/5A

10A



4xrated/continuous

2xrated/continuous



10xrated/10 seconds

25xrated/1 second



50xrated/1 second

50xrated/0.5 second



80xrated/0.5 second



Input burden



Current less 0.2 VA;

Response time & ripple



≤400 ms for step change 0-99% ripple less 0.5% ro peak to peak

Frequency



45 ~ 400 Hz

Stability



Temperature range ( 20 to 26°C ) long term stability / year

Maximum 60 ppm / °C less 0.2% draft / year typically.

Storage condition



Temperature range -25 to 70, RH 20 to 95% non condensed

Operating condition



Temperature range -20 to 65°C, RH 0 to 99% non condensed

Magnetic field effect



< 0.01% under 100 ampere turns at 1M center

Power dissipation



Maximum 3.5 VA for FPA / FPAR; 8 VA for FPAX

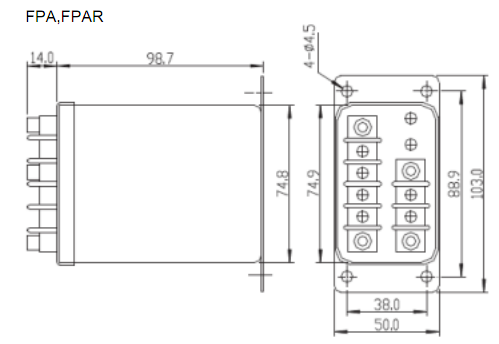

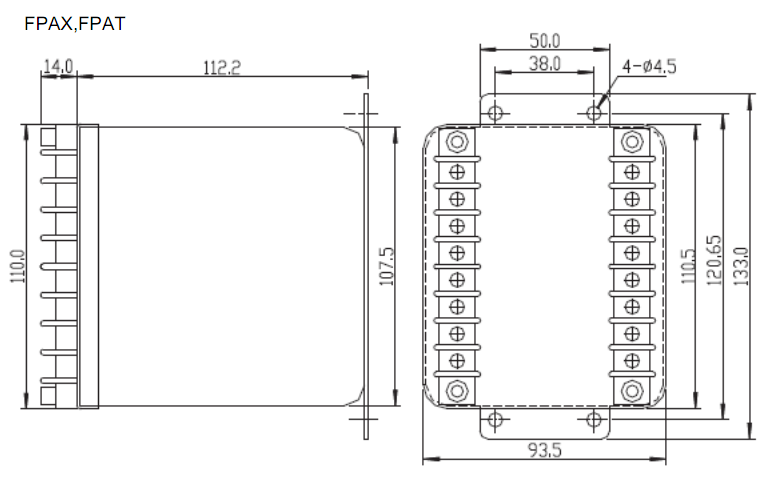

3.Dimensional Drawings



4.Trminal Connection


1.Order form:



Input & Output parameters



An:

Current input

An:
rating range

A1:

1A

0-1.2A

A2:

5A

0-6A

A3:

10A

0-12A

Ay:

Specified

Fn:

Input frequency

Fn:

rating range

F1:

50Hz

45-55Hz

F2:

60Hz

55-65Hz

F3:

400Hz

Fy:

Specified

Pn:

Auxiliary power

Pn

Rating
range

P1:

AC110 V

120 V ± 15%

P2:

AC220 V

 240 V ± 15%

Ps:

Internal Power

Py:

Specified

PDn

ratingrange

PD1:

DC110 V

120 V ± 15%

PD2:

DC220 V

240 V ± 15%

PD3:

DC24 V

24 V ± 20%

PDy:

Specified

 On:Output

O1:

0-1mA

O2:

0-20mA

O3:

4-20mA

O4:

0-5mA

O5:

0-10mA

O7:

0-1V

O8:

0-5V

O9:

0-10V

O10:

2-10V

O11:

1-5V

 Note:

     1. FPA/FPV can be dual output;

     2. "*" auxiliary power supply optional PD1: DC 110V, PD2: DC 220V.

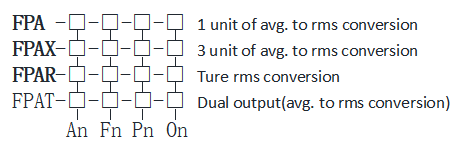

When signing the order contract, the required model and specifications should be specified in detail. The selected model and specifications should be filled in with the code in the following format.


Example 1. FPA-A2-F1-P2-O3

Current transducer

Input: 0-5A

Frequency: 50Hz

Auxiliary power supply: AC 220V

Output: 0-5V/0-1mA
