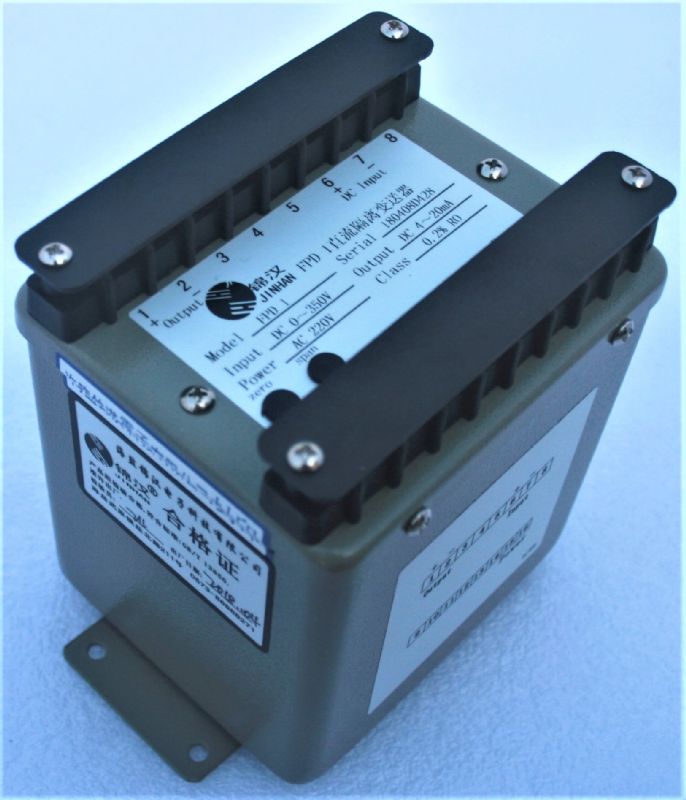

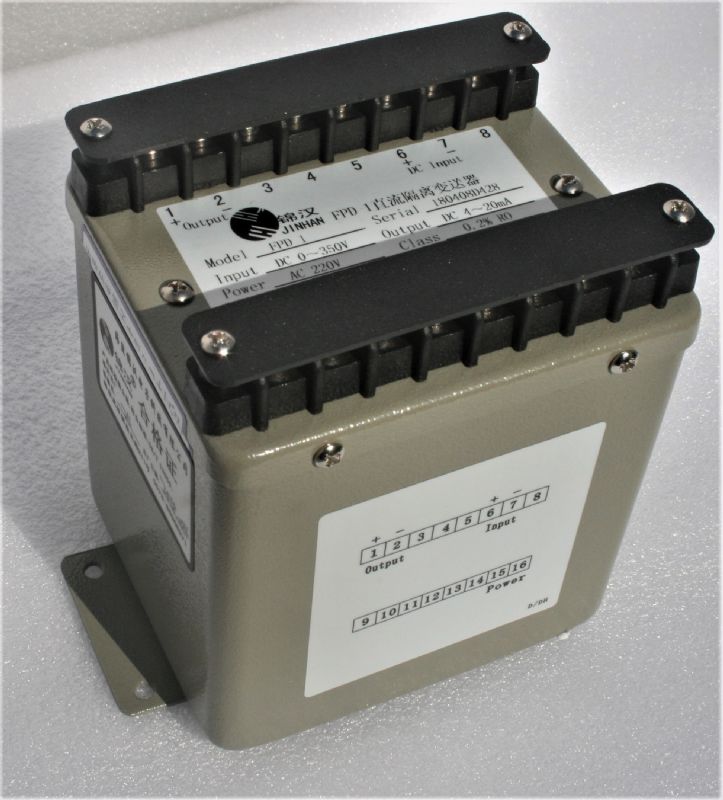

FPD-1&FPD-2 DC ISOLATING TRANSDUCER

Power transducer FP series power Transducer

Quick Overview

The FPD Series DC Isolation Transmitter is an instrument that converts a DC voltage or current signal into a linearly proportionally different DC voltage or current signal that is electrically isolated from each other. Mainly used for measurement of generator rotor voltage and current

OnLine Service:
Share:

1.Introduction:

The FPD Series DC Isolation Transmitter is an instrument that converts a DC voltage or current signal into a linearly proportionally different DC voltage or current signal that is electrically isolated from each other. It can be used to measure the generator rotor voltage and current, and can be widely used in various other occasions.

The main models are as follows:

FPD-1:Single output DC isolation transducer

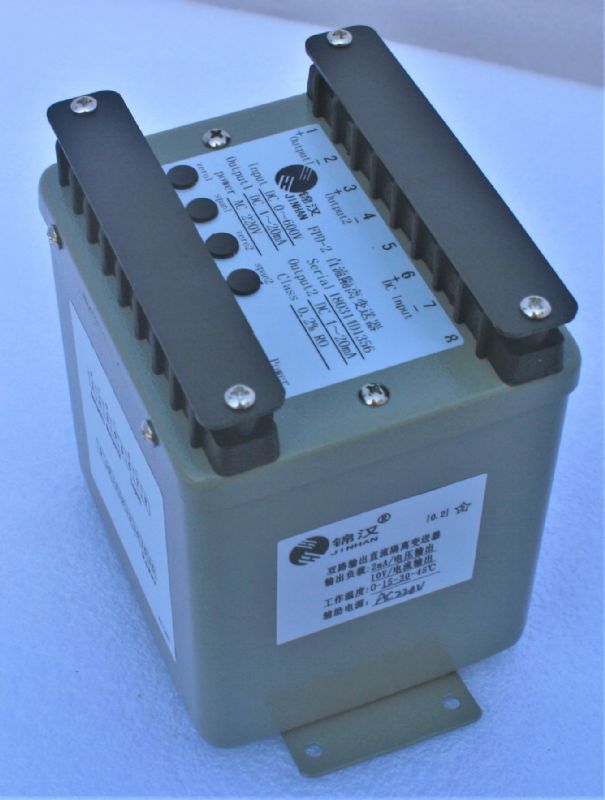

FPD-2:Dual output DC isolation transducer

FPDH-1:Single output DC high voltage isolation transducer

FPDH-2: Dual output DC high voltage isolation transduce

2.Specification

Accuracy ( 23±3)



0.2% of effecive range

Linearty & repeatability



0.05% typical

Maximum output load



DC current mode : maximum 10V drop

DC voltage mode : maximum 5mA drive

Dielectric strength



2000Vacpower / input & output terminals…… FPD

2000Vacinput / output / case…………………FPD

4000Vac ... power / input & output terminals………FPDH

4000Vac ... input / output / case…………………… FPDH

Output drive capability



10mA for voltage mode, 10V for current mode

Maximum input over



300Vrms continuous> 2V ranges

150Vrms continuous2V ranges

150mA continuous for current input

Input resistance-ohm



100M ... 2V ranges,500K >2V ranges

20 for all current input range

Response time & ripple



250 ms typically, ripple 0.1% rms ro

Power effect



< 0.003% for per volt chang

Common mode rejection



120dB, DC to 60Hz

Temperatured stability



0.007% ro per degree

Storage condition



Temperature range -10 to 70°C, RH 20 to 95% non condensed

Operating condition



Temperature range -5 to 55°C, RH 20 to 95% non condensed

Power supply



±10% of rated, less 3.5 VA for AC input

±10% of rated, less 3.5 Watt for DC input

Construction



Socket plug-in type with barrier terminals

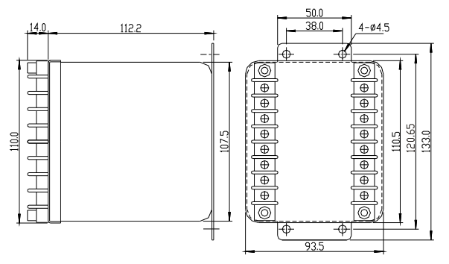

3.Dimensional Drawings

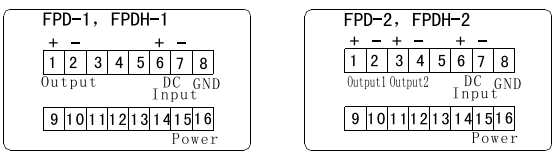

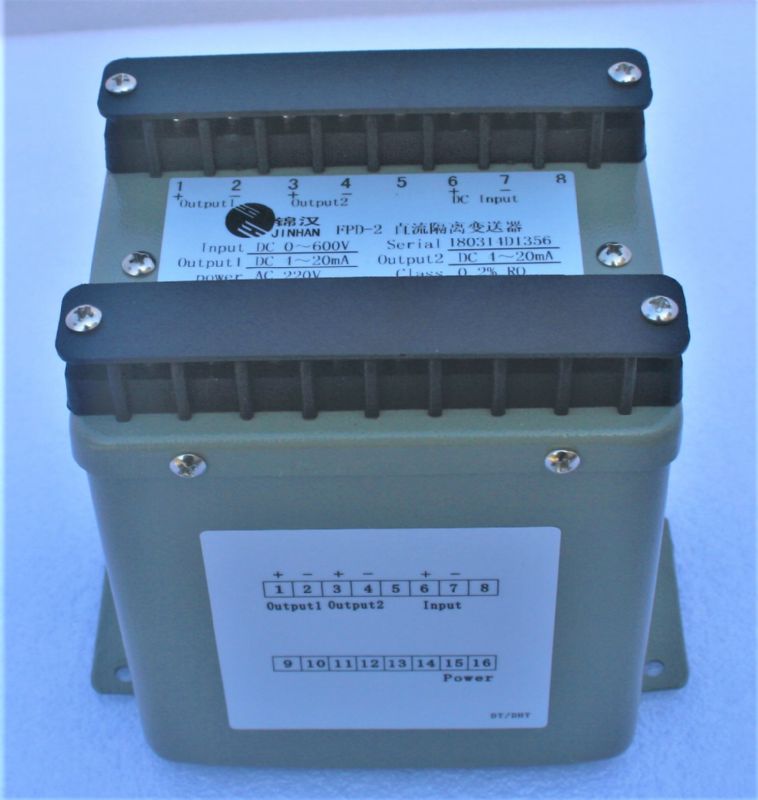

4.Terminal Connection


1.Order form


Input & Output parameters

An:电流输入范围

Input Ranges Current

Vn电压输入范围

Input Ranges Voltage

Pn电源                rating

Aux. Power Standard     range

A1

0-1mA

A2

0-2mA

V1

0-50mV

V2

0-100mV

V3

0-200mV

P1

AC110 V

120 V ± 15%

PD1

DC110V

120 V ± 15%

A3

0-5mA

A4

0-10mA

V4

0-500mV

V5

0-1V

V6

0-2V

P2

AC220 V

240 V ± 15%

PD2

DC220V

240V± 15%

A5

0-20mA

A6

4-20mA

V7

0-5V

V8

1-5V

V9

0-10V

Ps

Internal Power

PD3

DC24 V

24 V ± 20%

A7

0-50mA

A8

10-50mA

V10

2-10V

V11

0-120V

V12

0-200V

Py

Specified

PDy

Specified

A9

0-75mV



V13

0-350V

V14

0-600V









On:输出

Output Range

O1

0-1mA

O2

0-20mA

O3

4-20mA

O4

0-5mA

O5

0-10mA



O7

0-1V

O8

0-5V

O9

0-10V

O10

2-10V

O11

1-5V

O13

用户指定


When signing the order contract, the required model and specifications should be specified in detail. The selected model and specifications should be filled in with the code in the following format.

Example 1: FPD-1-A1-P2-O8

         FPD-1 Single Output DC Isolation Transmitter

         Input: 0-1mA

         Auxiliary power supply: AC 220V

         Output: 0-5V
